Description

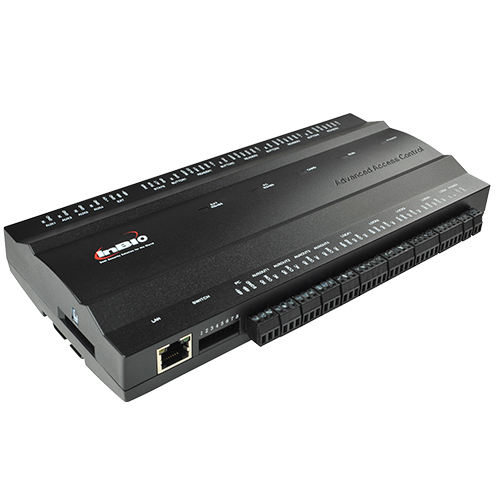

inbio 460 4 door controller carries is a high-performance, IP-based biometric 4-door access control panel designed for security-sensitive applications. It supports up to 3,000 fingerprint templates, 30,000 card users, and 100,000 events, featuring on-panel fingerprint matching via RS-485 readers (e.g., FR series) and Wiegand compatibility. It supports TCP/IP and RS485 communication, with encrypted data transfer.
n
inbio 460 4 door controller Key Features and Specifications:
n
-
n
- Door Capacity: Controls up to 4 doors.
- Reader Support: 12 readers total (8x RS-485 FR series, 4x Wiegand).
- Inputs/Outputs: 12 inputs (4 exit buttons, 4 door status, 4 AUX) and 8 outputs (4-Form C relay for lock, 4-Form C for Aux).
- Capacity: 3,000 fingerprints, 30,000 cards, and 100,000 log events.
- Communication: TCP/IP and RS-485.
- Security: Features built-in anti-passback, first-card opening, multi-card opening, and duress password support.
- Real-time Management: on- board SD card backup for data protection during power failures.
- Processor/Memory: 32-bit 1.2GHz CPU (Pro model) or 400MHz, with 128MB RAM and 256MB Flash memory.
n
n
n
n
n
n
n
n
n

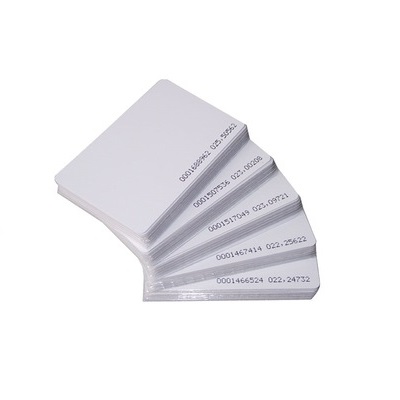

The system supports various card types, including normal, blacklist, and visitor cards, and provides alarms for door timeout, forced entry, and tampering. It is designed for, but not limited to, corporate, school, and hospital applications.
nFree SDK is available for integrators and OEM’s to integrate the inBio controllers with their or existing security or personnel management applications. Upon request, ZK can also customize inBio firmware to meet any custom requirements.
