fire hydrant landing valve

Description

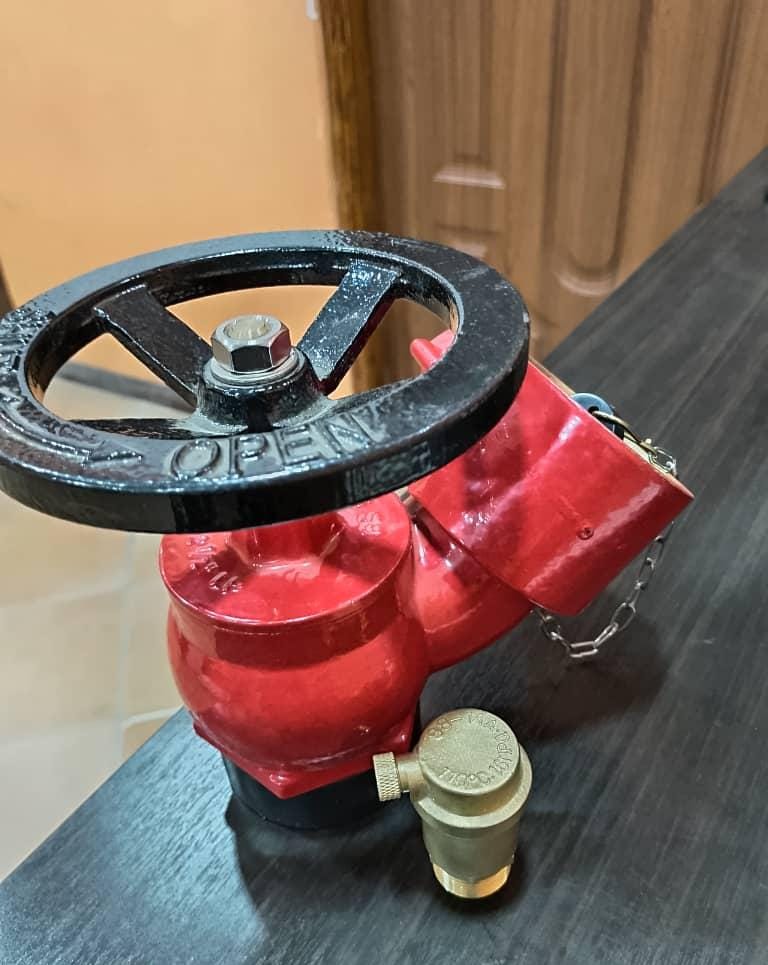

Fire hydrant landing valve description

• Function:
  Provides a controlled water supply from a building’s fire piping network to fire hoses and other equipment.
• Operation:
  A handwheel on top is rotated (usually counter-clockwise) to open the valve and release water. Most are designed for full-on or full-off operation.
• Appearance: Often painted red or another distinctive color, with a handwheel that is typically black or another contrasting color

fire hydrant landing valve Specifications Feature Specification Body Material Bronze, cast iron, or stainless steel Handwheel Grey cast iron Nominal Size DN65 (or 2-1/2″) Working Pressure 1.6 MPa / 16 bar Test Pressure 2.4 MPa / 24 bar Inlet Options include 2.5″ BSP male thread or BS4504 flanged Outlet 2.5″ BS336 Female instantaneous coupling Applicable Medium Clean water or foam mixture Finish UV-resistant red powder coating Certification Can be KITEMARK or ISI marked depending on regional standards
