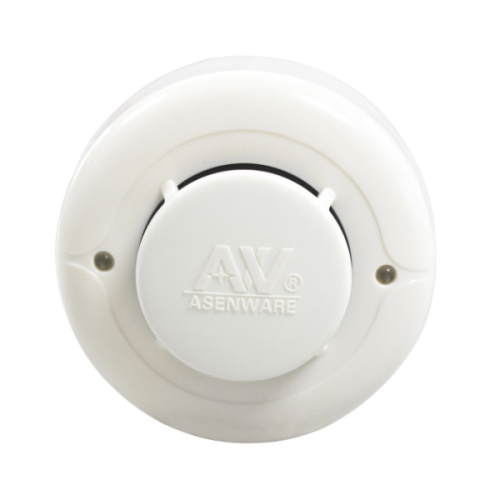

Aw-D101 Asenware Addressable Smoke Detector Fire Alarm

Description

Aw-D101 Asenware Addressable Smoke Detector Fire Alarm key features

n
n

n
• Addressable -Analog Communication: Each device has a unique address for precise location identification.

n

• Intelligent Detector: Works with intelligent fire alarm control panels

n

• Photoelectric Sensor: Uses a photoelectric sensor to detect smoke.

n

• Two-Wire Connection: Utilizes a two-wire system for power and communication.

n

• Low Power Consumption: Features a low standby current of ≤2.5mA for continuous monitoring.

n

• LED Indicators: Two red LEDs that blink in normal mode and become stationary during a fire.

n

• Remote Test: The control panel can perform a remote test of the detector.

n

• EN54-7 Standard: Tested according to the European standard EN 54-7 for fire detection and fire alarm systems.

n

n

Aw-D101 Asenware Addressable Smoke Detector Fire Alarm How it Works

n

n
• When smoke enters the detector, it obscures the photoelectric beam.

n

• The detector communicates its unique address to the Asenware fire alarm control panel.

n

• The panel then displays the specific location of the activated device, allowing for faster response and easier maintenance
