Description

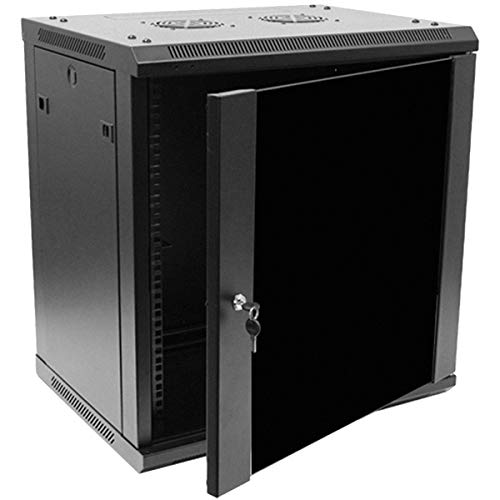

12u wm645i cabinet wall cabinet means it would have 21″ internal usable space (12×1.75″). It can accommodate networking equipment with a maximum depth of about 17 inches (it’s better to leave about 3 or 4 inches space for airflow or adjustment), which is ideal for standard server or network switches installation.
n
nWall mount cabinets can be installed on walls, which is often used to house network switches, servers, patch panel or applications like telephone and audio/visual equipment. For 12U, the “U” stands for the rack unit that is an EIA standard measuring unit for rack mount type equipment. 1U is equal to 1.75″ in height.
n
n
n
12u wm645i cabinet Key Specifications
n
n
n
n
n
| Attribute | Value |
|---|---|
| Rack Units (Height) | 12U (approx. 630mm – 645mm external height) |
| External Dimensions (W x D) | 600mm x 450mm (width by depth) |
| Compatibility | Standard 19-inch rack-mounted equipment |
| Material | High-grade cold-rolled steel (typically 1.2mm to 1.5mm thick) |
| Load Capacity | Typically 60 kg to 80 kg (approx. 132 lbs to 176 lbs) |
| Color | Usually black (RAL 9004/9005) or grey finish |
| Protection Grade | IP20 |
| Assembly | Often supplied flat-packed for self-assembly to save on shipping costs |
n
n
n
12u wm645i cabinet Description and Features
n
-
n
- Design: This is a single-section, wall-mounted enclosure designed to be compact and secure. The frame structure is typically welded for durability, though it may be supplied unassembled.
- Accessibility: Features a lockable front door with a toughened glass panel that can be installed to open from either the left or right. Side panels are usually removable (often with optional locks) for easy access during installation and maintenance.
- Cable Management: Equipped with cable entry points at both the top and bottom panels, which often have knock-out plates or covers for organized cable routing.
- Cooling: Includes ventilation slots and often comes with a pre-installed cooling fan or fan cutouts on the top cover to manage airflow and heat.
- Included Accessories: Typically comes with essential accessories such as a basic power distribution unit (PDU), a fixed shelf/tray, and a set of M6 cage nuts and bolts.
- Standards Compliance: Manufactured in accordance with international standards such as ANSI/EIA RS-310-D and IEC297-2 to ensure compatibility with a wide range of equipment.
